Aerial Hanging Holographic LED (LS-HOLO-AIR)Page
Pixel Pitch: P2,P2.5,P3.91,P5,P10mm
- High Light Transmittance: The LED holographic transparent double-sided display utilizes a PCB substrate with multi-shaped apertures, achieving exceptional light transmittance of 75-90%.
- Single-Sided Display: Features a high-definition display interface
- Ultra-Thin Design: Only 3mm thick, weighing as low as 3.5kg/m².
- Flexible Installation: Flexible structure design enables application on curved glass surfaces.
- Customizable Cutting: Supports arbitrary size and shape cutting to meet diverse creative display requirements.
- Wide Viewing Angle: 140° omnidirectional visibility with no blind spots, color consistency, and stunning visual effects from any angle.
- Safe and Aesthetic: No exposed components; concealed power supply design ensures reliable safety.
- Quick Installation: Simple and efficient installation process allows direct adhesion to glass surfaces.
- High Brightness: 6000 nits brightness fully meets outdoor usage requirements.
- High Energy Efficiency: Power consumption as low as 400W/m².
Product Details：
Integrated lamp driver and LED chip, static scanning technology
Full-screen transparent and invisible, with no obstruction to sightlines or natural light
Display panel features a seamless structure, with transparent display covering over 95% of the entire unit
High-definition display quality! Stable images with rich, delicate colors
Horizontal and vertical pixels with equal spacing, integrated lamp-driver static scanning, 16-bit grayscale levels
Spatial floating images, naked-eye AR visual effects
Can be cropped freely without affecting the display.
Ultra-thin PET material, 3mm thick
Full-screen transparent and invisible, with no obstruction to sightlines or natural light
Display panel features a seamless structure, with transparent display covering over 95% of the entire unit
Soft and lightweight, bending to conform to the glass
Technical Specifications
| Parameter | Details |
|---|---|
| Pixel Pitch | P2.5, P3.9, P5, P8 |
| Brightness | ≥3500 nits |
| Refresh Rate | ≥1920 Hz |
| Gray Scale | 14-bit |
| Viewing Angle | H:140° / V:140° |
| Transparency | 75% |
| Power Consumption | 180W/m² / 540W/m² |
| Best Viewing Distance | Pitch * 4m |
| Cabinet Size | 500x1000mm |
| Application Scenarios | Retail showcases, exhibition halls for suspended effects |

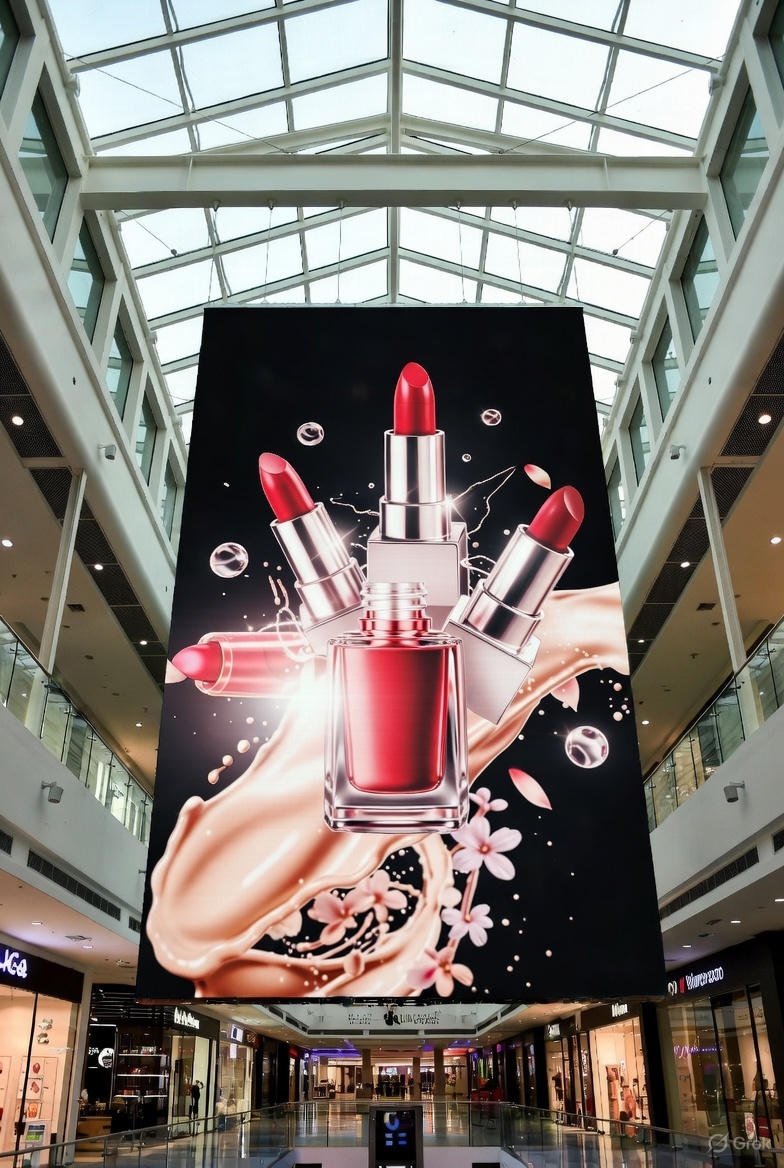

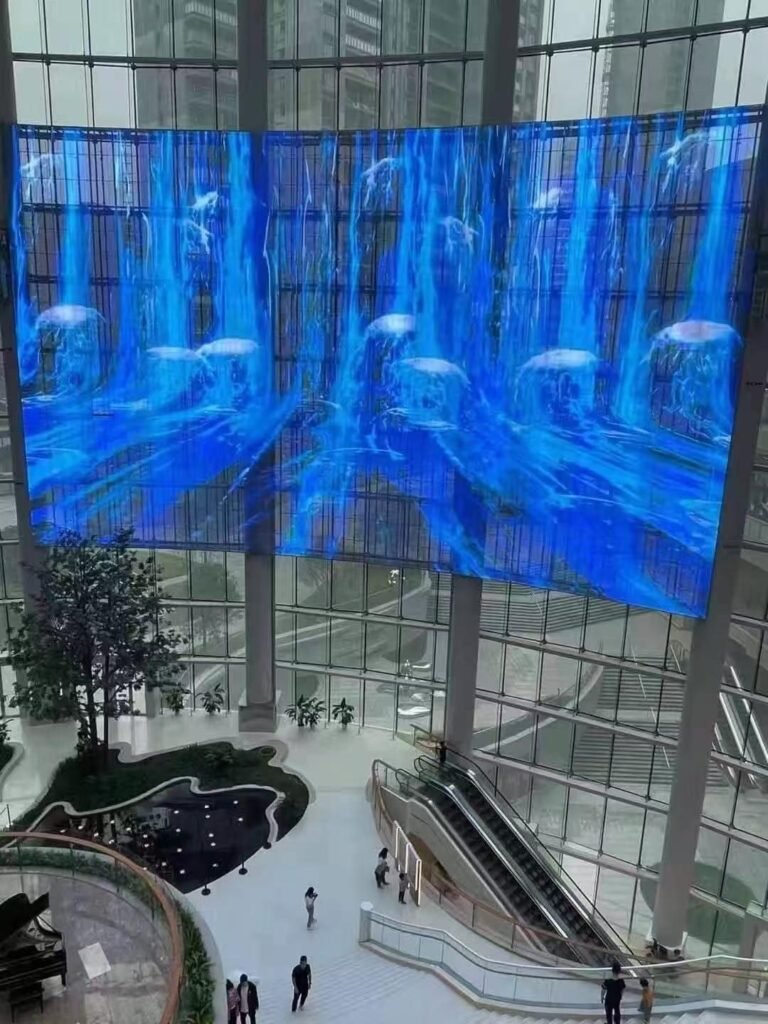

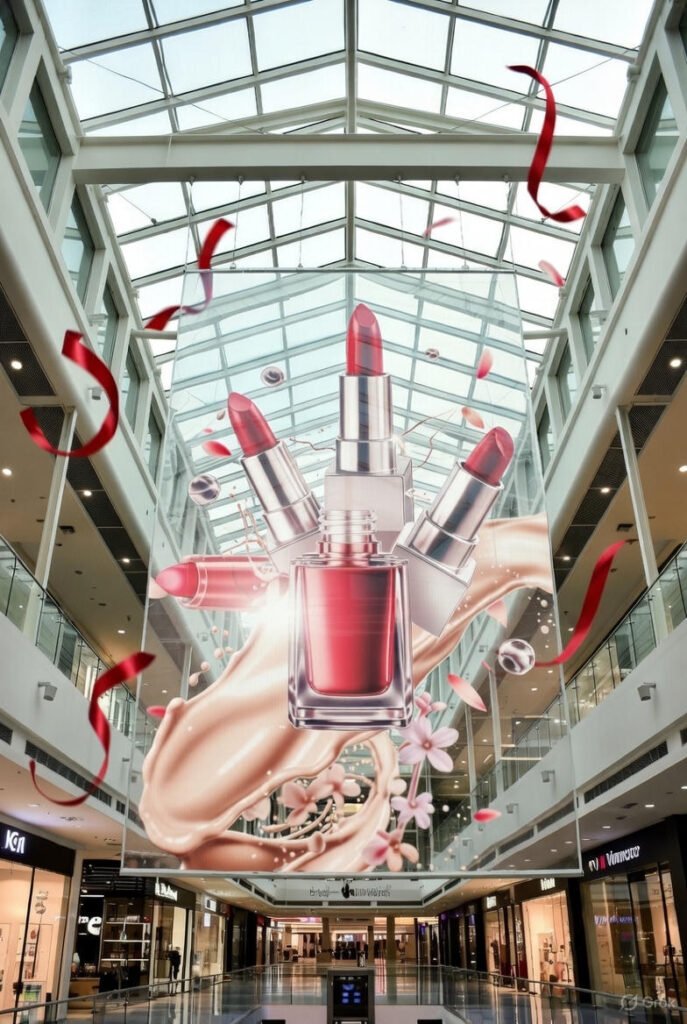

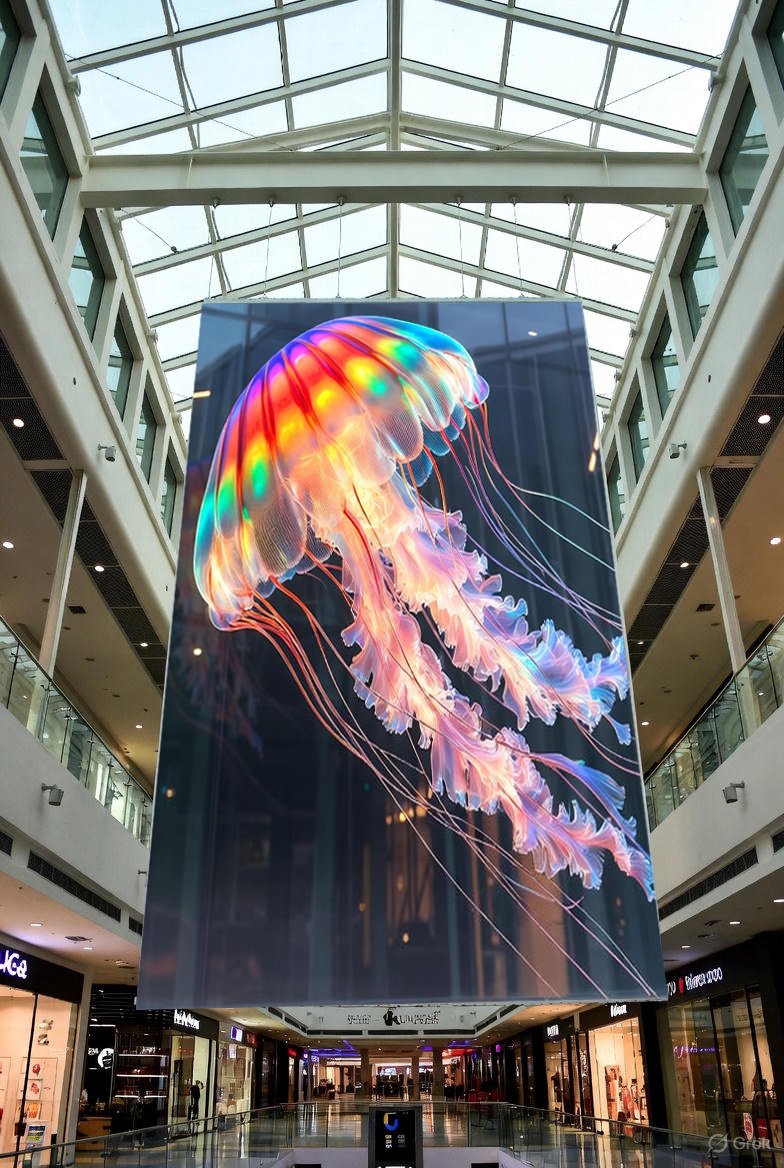

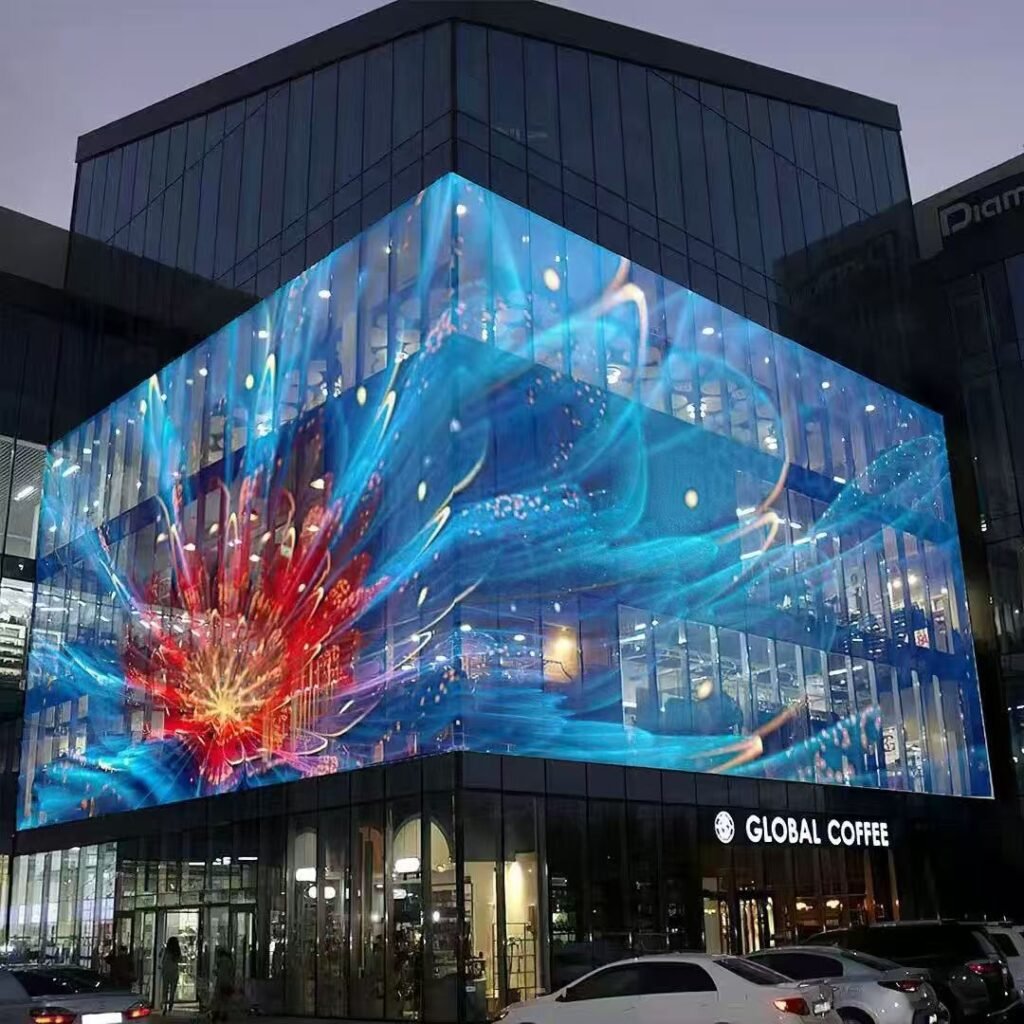

The LED display we recently constructed

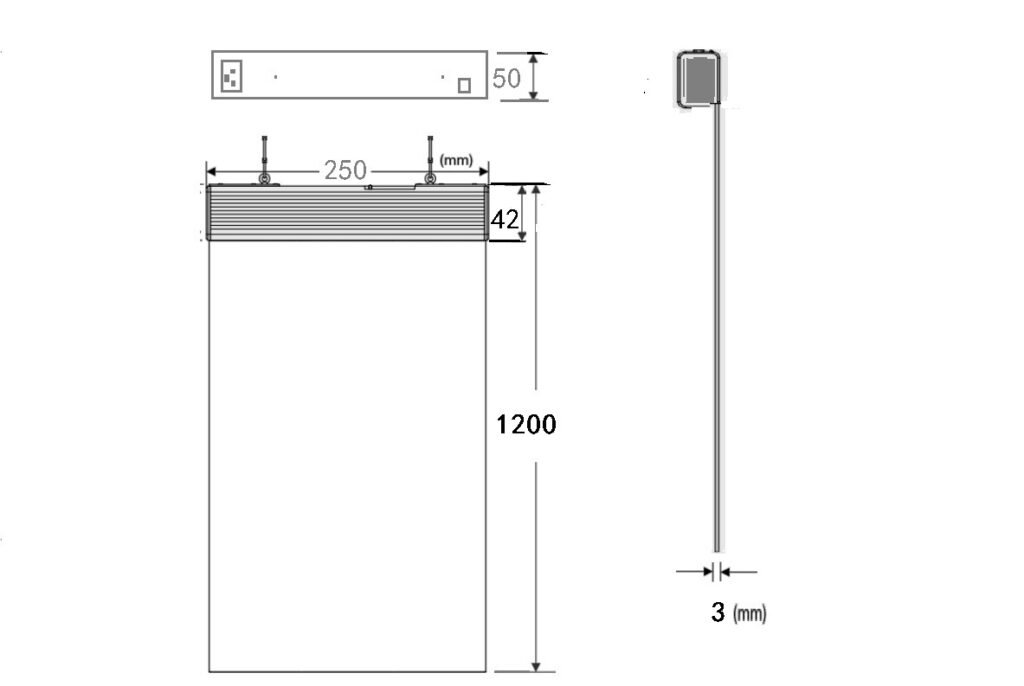

Holographic Dual-Sided Display Single Board Dimensions
Application Scenarios
Retail showcases
Exhibition halls
