COB Micro Indoor LED (LS-COB-FIX)
Pixel Pitch: 0.78,P0.9, P1.2, P1.5

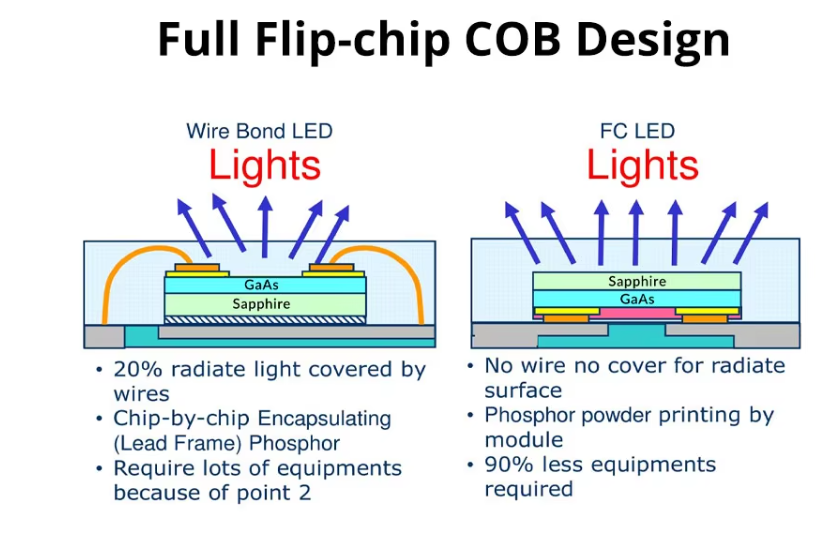

- Better display performance: Chip-on-Board (COB) packaging technology uses surface light sources for illumination, resulting in high color fidelity and better detail representation, making it suitable for high-resolution imaging
- Reliability: High integration reduces the number and size of components, thereby reducing the failure rate.
- Excellent heat dissipation:The heat of the COB display screen is dissipated directly through the PCB board, making it suitable for harsh environments and long-duration operating scenarios
Product Details：

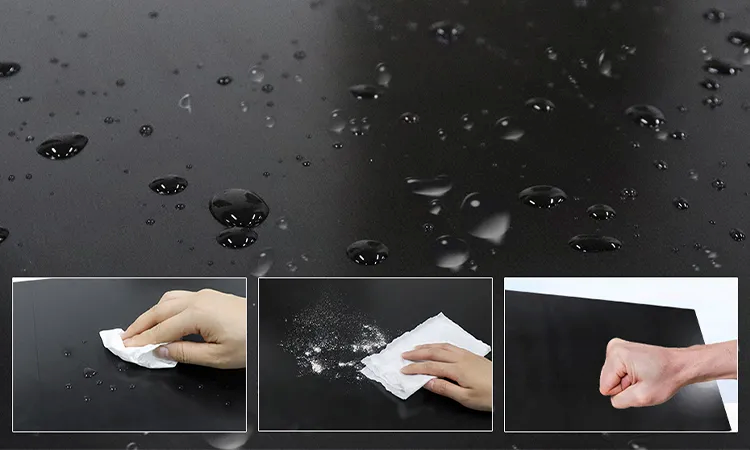

IP54 protection rating, washable with water, alcohol, and disinfectants.

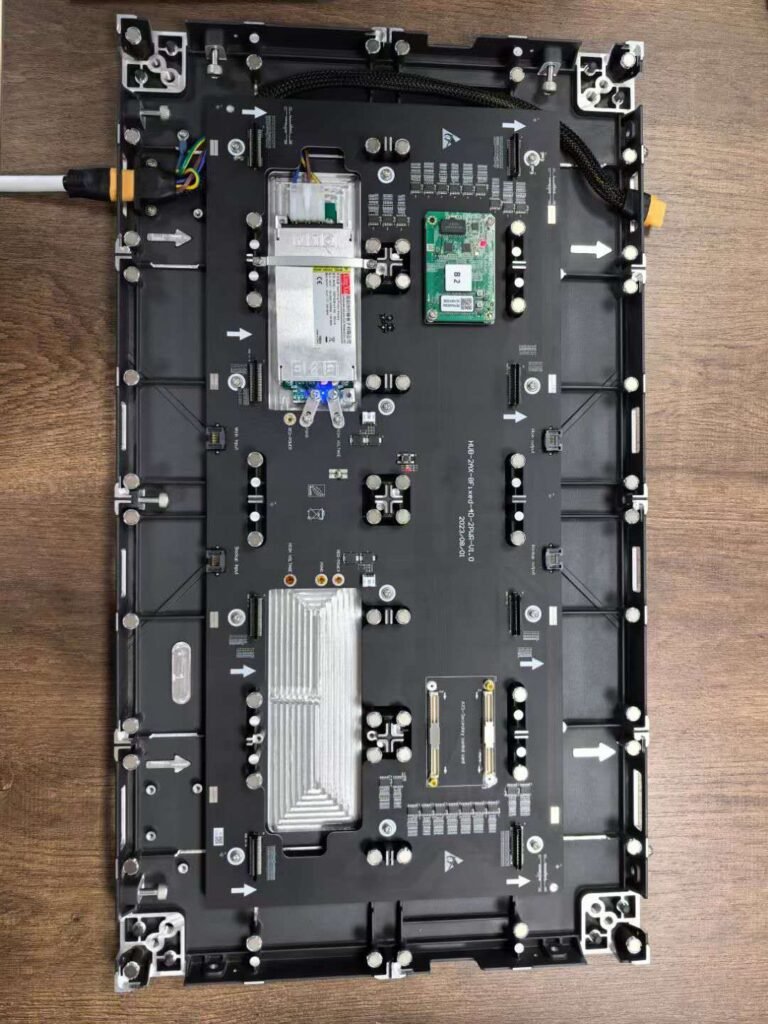

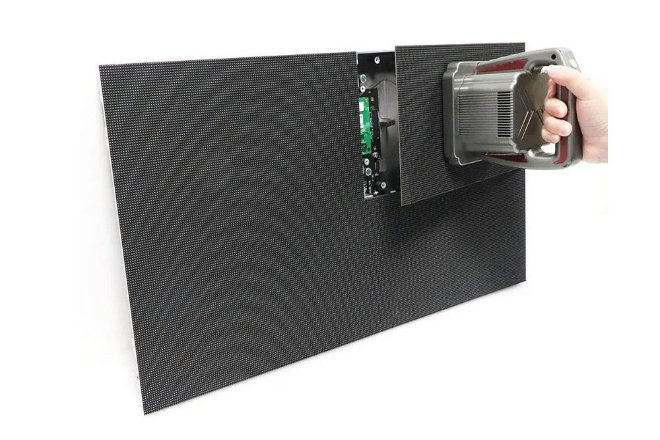

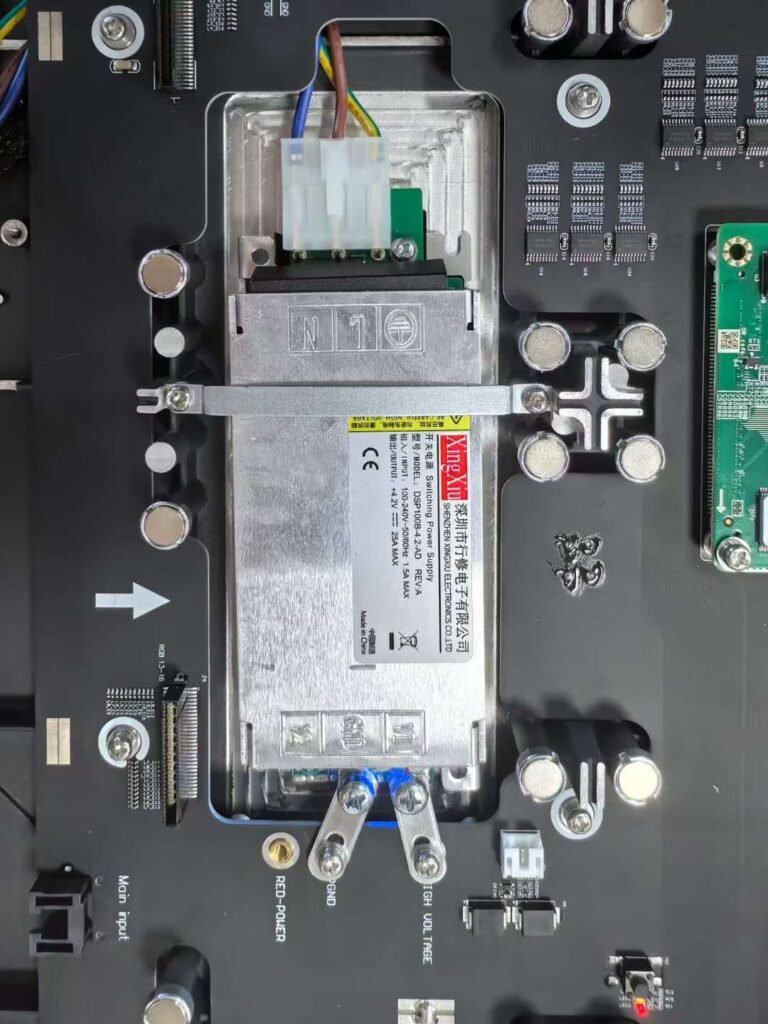

Magnetic-Attachment Front Maintenance Design
High-definition display
High refresh rate, high-definition contrast
Our display employs high-refresh-rate IC components with a refresh rate of 1920-7680Hz. The LED color ratio is maintained at 3:6:1 to preserve white balance and ensure consistent color reproduction. It delivers high-definition visuals that perfectly restore nature’s true colors.
Technical Specifications
| Parameter | Details |
|---|---|
| Pixel Pitch | P0.9, P1.2, P1.5 |
| Brightness | ≥600 nits |
| Refresh Rate | ≥3840 Hz |
| Gray Scale | 16-bit |
| Viewing Angle | H:170° / V:170° |
| IP Rating | IP54 |
| Power Consumption | 120W/m² / 360W/m² |
| Best Viewing Distance | Pitch * 1.5m |
| Cabinet Size | 600x337.5mm |
| Application Scenarios | Museums, medical displays for close-range fine viewing |

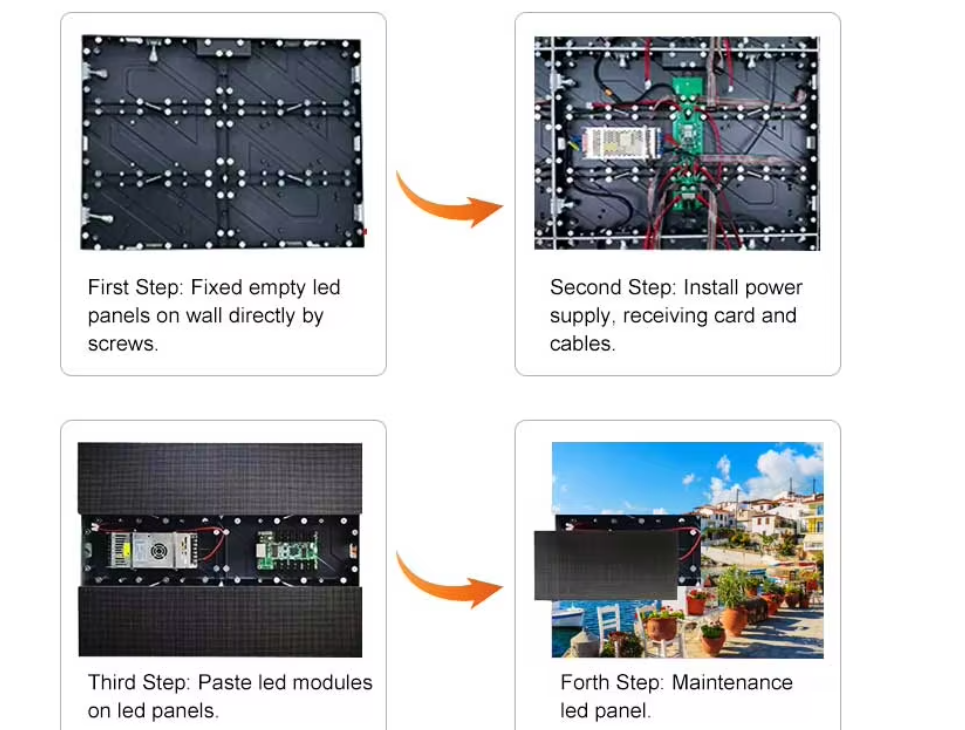

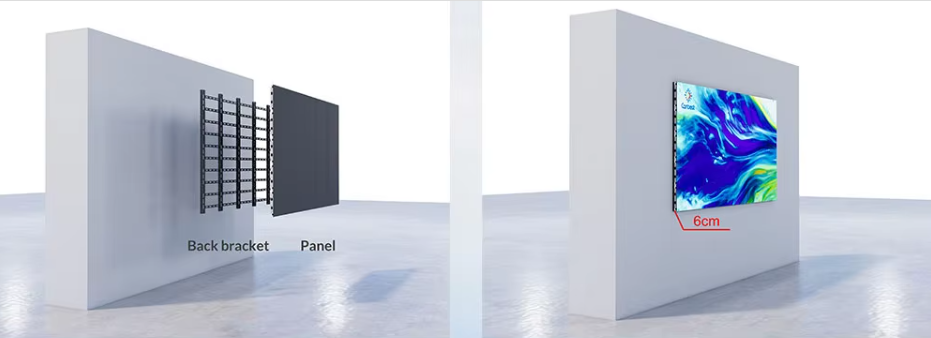

Multiple installation methods
Suitable for various environments and meets diverse installation requirements

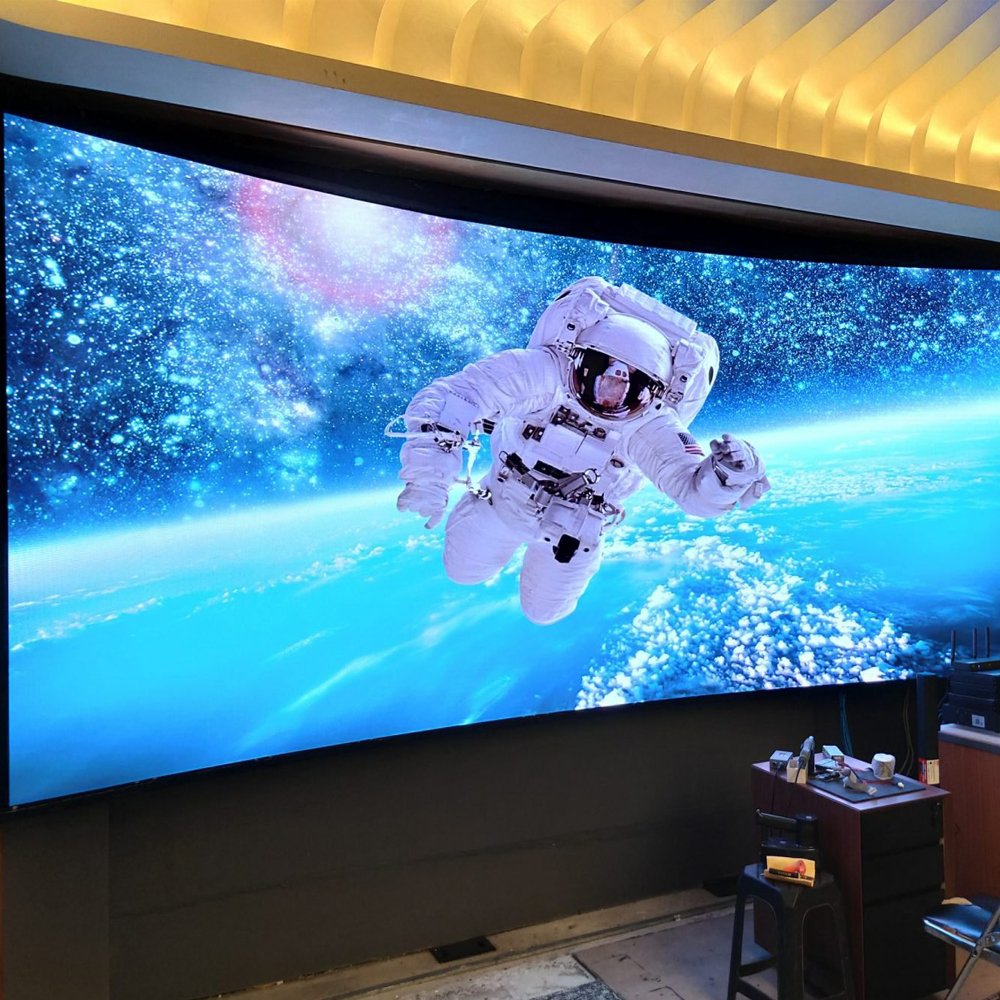

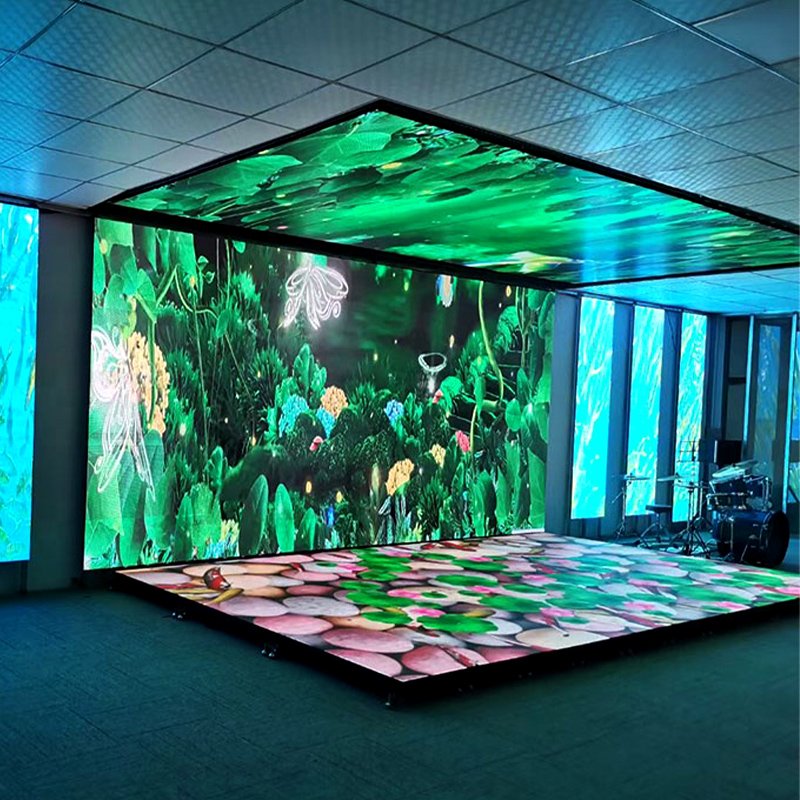

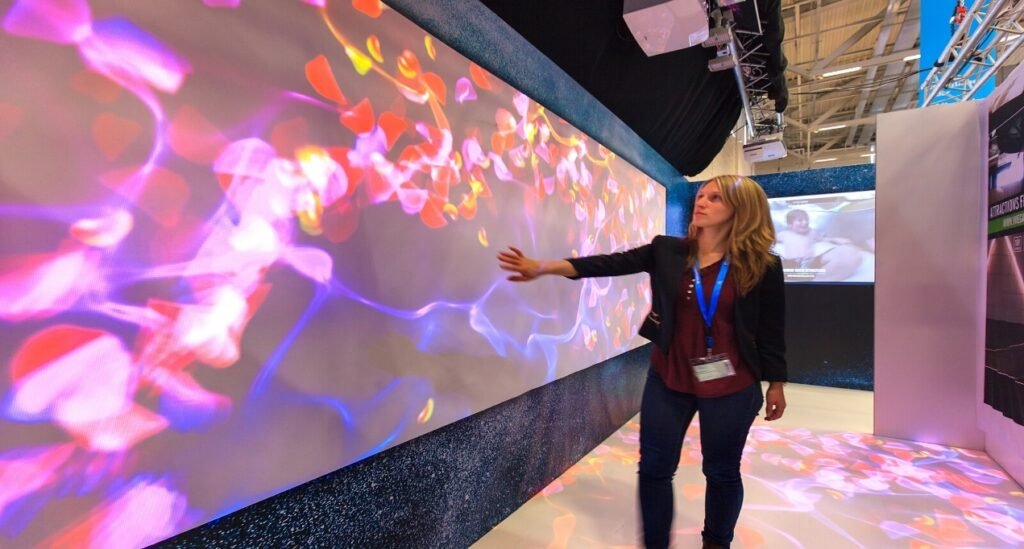

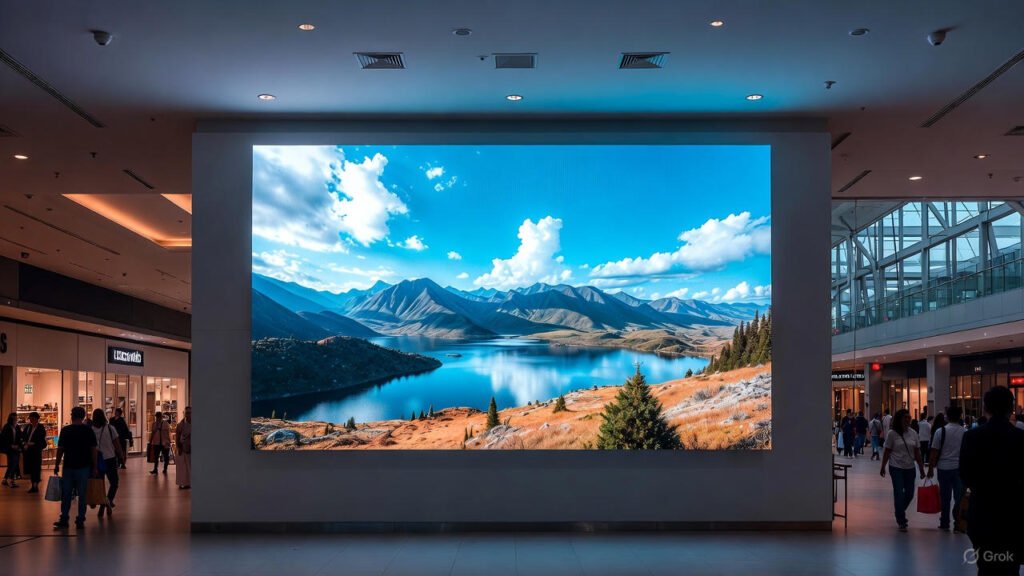

The LED display we recently constructed
Application Scenarios
Museums
Medical displays
