High Brightness Outdoor LED Display Installation Guide

Installing a high-brightness outdoor LED display is a complex undertaking that demands precision, adherence to safety protocols, and a deep understanding of engineering principles. This guide will navigate the critical phases, ensuring that your ‘Outdoor Fixed LED’ display operates flawlessly, withstands environmental challenges, and delivers maximum impact for years to come.

I. Pre-Installation Planning: The Foundation of Success

The success and longevity of any outdoor LED display begin long before the first module is mounted. Comprehensive planning is paramount to mitigate risks, ensure compliance, and optimize performance.

A. Site Survey & Assessment

A detailed site survey is the cornerstone of a successful installation. It provides critical data necessary for design, structural engineering, and logistical planning.

• Location & Visibility: Assess the target viewing audience, primary viewing distances, and angles. Evaluate ambient light conditions throughout the day to determine optimal display brightness (nits) and contrast requirements. Consider potential obstructions and sun path analysis to minimize glare.
• Structural Integrity: This is a non-negotiable step. A professional structural engineer must assess the load-bearing capacity of the chosen structure (building facade, freestanding pole, rooftop support). This assessment must account for the display’s static weight, dynamic wind loads (crucial for wind load calculations), potential seismic activity, and snow loads in relevant climates.
• Environmental Factors: Beyond wind, consider temperature extremes (hot and cold), humidity levels, potential for saltwater corrosion (coastal areas), and exposure to dust or pollution. Our ‘Outdoor Fixed LED’ displays are built with robust IP ratings, but understanding site-specific challenges informs auxiliary considerations like protective coatings or enhanced cooling.
• Power Availability & Data Connectivity: Verify the existing power infrastructure’s capacity to meet the display’s total power consumption. Identify the nearest suitable power source and data transmission points (fiber optic, Ethernet). Plan for conduit routes, trenching, and power distribution.
• Accessibility: Plan for safe access during installation, routine maintenance, and potential repairs. This includes assessing crane access, scaffolding requirements, and the need for elevated work platforms.

B. Permitting & Regulatory Compliance

Navigating the legal and regulatory landscape is crucial to avoid costly delays and penalties.

• Local Zoning & Building Codes: Research local ordinances regarding sign size, height, brightness, content restrictions, and proximity to roadways or residential areas.
• Structural Engineering Approvals: Submit the structural design plans, certified by a licensed engineer, to local authorities for approval.
• Electrical Permits: Secure all necessary electrical permits. All electrical work must comply with national and local electrical codes (e.g., NEC in the US).
• Environmental & Advertising Regulations: Be aware of any specific regulations concerning light pollution or content appropriateness.

C. Display Selection & Design Considerations

While this guide focuses on installation, understanding the display’s specifications chosen from our ‘Outdoor Fixed LED’ line is vital for the process.

• Brightness (Nits): Ensure the selected brightness (typically 5,000-10,000 nits for outdoor) matches the ambient light conditions determined in the site survey.
• Pixel Pitch: The pixel pitch (distance between pixel centers) dictates the optimal viewing distance and image clarity. Smaller pixel pitches are suitable for closer viewing distances.
• IP Rating: Our ‘Outdoor Fixed LED’ products feature high IP (Ingress Protection) ratings (typically IP65/IP67 for outdoor) to protect against dust and water ingress. Confirm the selected rating meets environmental demands.
• Weight & Dimensions: These factors directly influence structural design and lifting equipment requirements.
• Cooling Mechanisms: Understand the display’s integrated cooling system (fan-based, fanless convection) and ensure sufficient airflow in its mounted location.

D. Mounting Structure Design

The mounting structure is the backbone of your display; its design must be robust and precisely engineered.

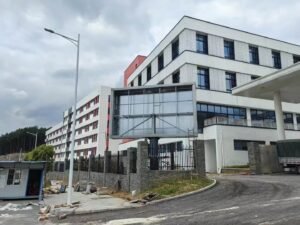

• Types of Structures: Consider wall-mounted frames, pole-mounted structures (monopole or double pole), rooftop supports, or freestanding gantries.
• Material & Fabrication: Typically, galvanized steel or aluminum alloys are used for their strength and corrosion resistance. Fabrication must meet precise tolerances for seamless display integration.
• Wind Load Calculation: This is critical. The structure must be designed to safely withstand the maximum anticipated wind loads for the region, often exceeding standard building codes due to the display’s large surface area.
• Maintenance Access: Incorporate walkways, ladders, or platforms into the design to facilitate safe and efficient maintenance.

II. Electrical & Data Infrastructure Setup

Reliable power and data connectivity are the lifeblood of your high-brightness outdoor LED display.

A. Power Supply Planning

• Total Power Consumption: Calculate the maximum power draw of the entire display, including all LED modules, sending cards, and auxiliary equipment. Add a buffer for safety and future expansion.
• Dedicated Circuits & Breakers: Install dedicated electrical circuits with appropriately sized circuit breakers to prevent overloading and ensure consistent power delivery.
• Cable Sizing & Conduits: Select high-grade, UV-resistant power cables with adequate gauge to minimize voltage drop over distance. All outdoor cabling must be housed in weather-resistant conduits (e.g., rigid metallic conduit or PVC-coated flexible conduit) to protect against environmental damage and tampering.
• Grounding & Surge Protection: Implement robust grounding systems for the entire structure and display components to protect against lightning strikes and electrical surges. Install high-quality surge protection devices at the main power input and potentially at individual distribution points.

B. Data Transmission Planning

• Control System Selection: Choose between synchronous (real-time display from a connected PC) or asynchronous (content stored and played back from an embedded controller) systems based on content update frequency and connectivity.
• Cable Types & Routing: For shorter distances, high-quality shielded CAT6/6a Ethernet cables are standard. For longer distances or immunity to electrical interference, fiber optic cables are highly recommended. Ensure all outdoor data cables are UV-rated and protected within conduits.
• Signal Distribution: Plan for sending cards, receiving cards, and potentially signal extenders or media converters (for fiber optic runs) to ensure stable and consistent data transmission across the entire display.
• Redundancy: For mission-critical applications, consider implementing redundant power and data pathways to minimize downtime.

III. The Installation Process: Step-by-Step Execution

This phase demands precision, teamwork, and an unwavering commitment to safety.

A. Safety Protocols

Safety is paramount. Before any work begins, conduct a thorough safety briefing. All personnel must wear appropriate Personal Protective Equipment (PPE), including hard hats, safety glasses, gloves, and fall protection harnesses when working at height. Implement lockout/tagout procedures for electrical systems. Ensure all lifting equipment is certified and operated by licensed professionals.

B. Mounting Structure Installation

1. Site Preparation: Clear the installation area, ensure stable ground for lifting equipment, and establish safety zones.
2. Anchoring: Install anchor bolts or foundation elements according to the engineered plans. Ensure all anchor points are properly secured and cured (for concrete foundations).
3. Structure Assembly: Erect the mounting frame or pole, ensuring it is perfectly plumb, level, and square. Utilize laser levels and precise measuring tools for accuracy.
4. Corrosion Protection: Apply any necessary corrosion-resistant coatings or touch-ups to welded joints or exposed metal surfaces.

C. LED Cabinet Mounting

Our ‘Outdoor Fixed LED’ cabinets are designed for modular installation, but careful handling is essential.

1. Lifting & Positioning: Use appropriate lifting equipment (cranes, hoists) with suitable rigging to lift LED cabinets safely. Position them precisely onto the mounting structure.
2. Secure Fastening: Secure each cabinet to the mounting frame using the designated locking mechanisms and fasteners. Ensure all connections are tightened to specification.
3. Alignment: Crucially, ensure each cabinet is perfectly aligned with its neighbors, both horizontally and vertically, to create a seamless, gap-free display surface. Adjustments often require fine-tuning to eliminate visible seams between modules.
4. Progressive Assembly: Install cabinets systematically, often from the bottom up and center outwards, checking alignment and stability at each step.

D. Electrical Connections

1. Main Power Connection: Connect the main power supply to the display’s power distribution unit (PDU) or directly to the primary power input terminals, following all local electrical codes.
2. Cabinet Power Links: Connect power cables between individual LED cabinets, ensuring correct polarity and secure, weatherproof connections. Most ‘Outdoor Fixed LED’ products utilize daisy-chain power links.
3. Grounding: Verify that all LED cabinets, the mounting structure, and the electrical distribution system are properly grounded to a common ground point.

E. Data Connections

1. Control System Setup: Connect the display control PC or server to the sending card.
2. Data Links: Connect the sending card to the first LED cabinet (receiving card), and then daisy-chain data cables between subsequent cabinets in the correct sequence. Pay close attention to data flow directions.
3. Connection Verification: Visually inspect all data cables for secure connections and proper routing.

IV. Post-Installation Configuration & Calibration

Once the physical installation is complete, the display needs to be brought to life through software setup and meticulous calibration.

A. Software Setup & Configuration

1. Driver Installation: Install all necessary drivers and display control software for the sending card and control system on the designated PC.
2. Screen Mapping: Configure the display control software to accurately map the physical layout of the LED cabinets to the software’s virtual display. This includes setting the correct resolution, pixel pitch, and arrangement.
3. Brightness & Contrast Settings: Initially adjust the brightness to a safe, visible level. Further calibration will refine this.

B. Initial Testing & Troubleshooting

1. Power-Up Sequence: Power on the system in the recommended sequence (usually control PC first, then display power).
2. Pixel & Module Check: Run diagnostic patterns (e.g., solid red, green, blue, white, black) to identify any dead pixels, faulty modules, or connection issues. Replace or repair as necessary.
3. Connectivity Test: Confirm stable data communication across all modules.
4. Burn-in Test: Run the display for a sustained period (e.g., 24-48 hours) to identify any intermittent faults or early component failures.

C. Calibration

Optimal visual performance requires fine-tuning.

• Brightness Optimization: Adjust the display’s brightness based on the actual ambient light conditions at different times of day. Our ‘Outdoor Fixed LED’ displays often feature ambient light sensors for automatic brightness adjustment.
• Color Uniformity & White Balance: Calibrate the display to ensure consistent color reproduction and accurate white balance across the entire screen. Professional calibration tools may be required for optimal results, especially for large, high-resolution displays.
• Gamma Correction: Adjust gamma settings to ensure accurate representation of light and shadow, enhancing image depth and realism.

V. Ongoing Maintenance & Longevity

Even after professional installation, regular maintenance is vital to ensure the long-term performance and lifespan of your ‘Outdoor Fixed LED’ display.

• Regular Inspections: Periodically inspect the structural integrity of the mounting frame, cabling for wear or damage, and the condition of LED modules. Check for signs of water ingress, corrosion, or pest infestation.
• Cleaning Procedures: Gently clean the display surface to remove dust, dirt, and environmental residue. Use approved cleaning solutions and methods to avoid damage to the LED encapsulation. Ensure power is off during cleaning.
• Software Updates: Keep the control software and firmware updated to benefit from performance enhancements, bug fixes, and new features.
• Content Management: Ensure content is optimized for the display’s resolution and aspect ratio to prevent distortion and maintain image quality.
• Cooling System Check: Verify that fans (if present) are operating correctly and vents are unobstructed to prevent overheating.

Conclusion

The installation of a high-brightness outdoor LED display is a significant investment and a complex engineering task. By diligently following this expert guide, from meticulous pre-installation planning and regulatory compliance to precise physical assembly, electrical setup, and final calibration, you ensure that your ‘Outdoor Fixed LED’ display operates at its peak. A professionally installed display from our robust product line not only delivers stunning visual impact and attracts attention but also guarantees reliability, safety, and a long operational lifespan, maximizing your return on investment.
